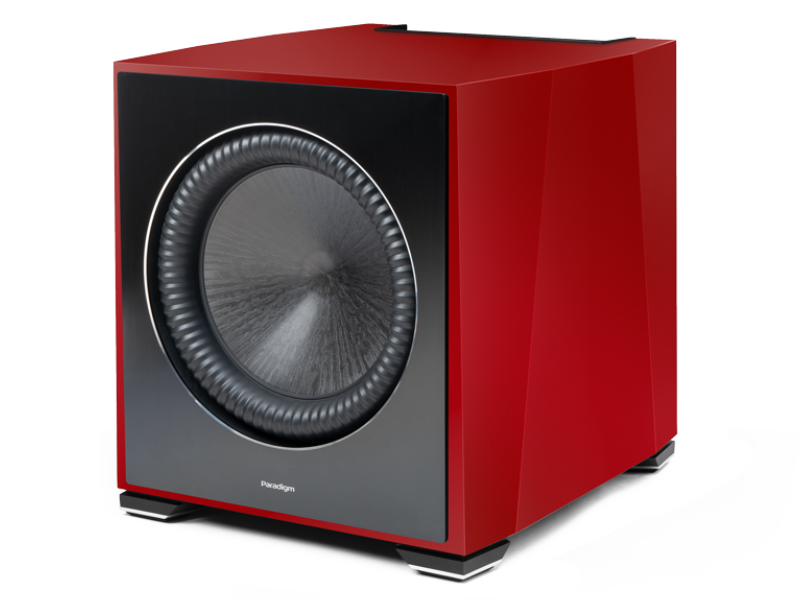

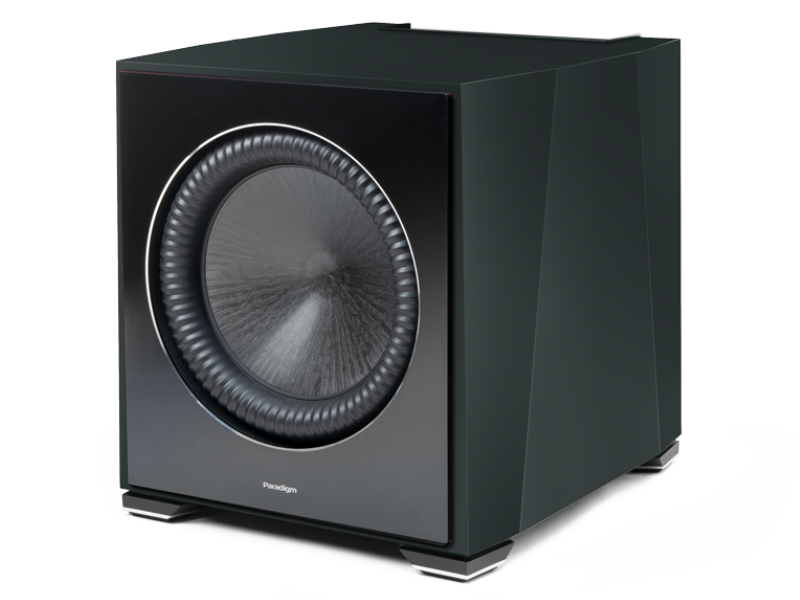

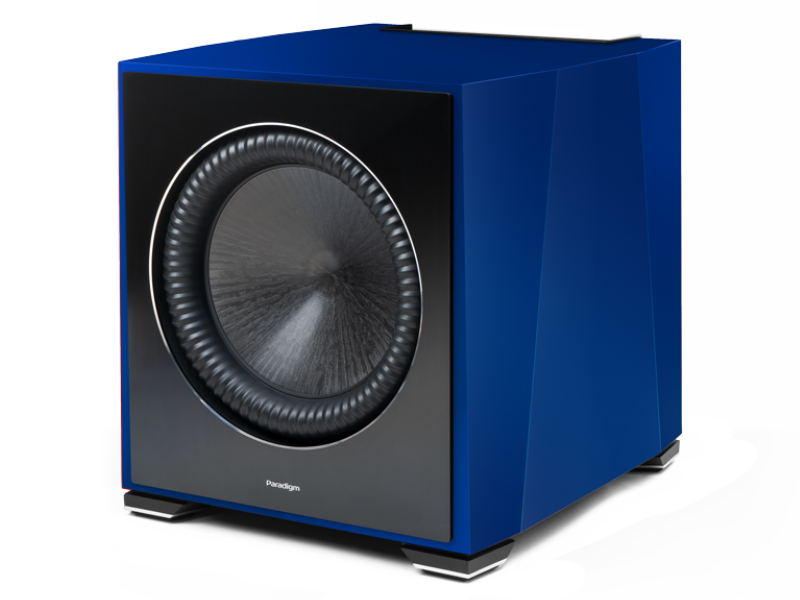

11" (279 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 1,100W RMS (2,200W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included.
| Specifications | |
|---|---|
| EFFECTIVE DISPLACEMENT | 183.1 cu in/3 L |
| DESIGN | 11" (279 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 1,100W RMS (2,200W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
| AMPLIFIER FEATURES | Auto-On / Off, Trigger On / Off |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 20 Hz to 140 Hz |
| ROOM CORRECTION | ARC Genesis (microphone included) |
| LOW FREQUENCY DRIVER | 11" (279 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 1.5" high-temperature voice coil |
| EFFECTIVE PISTON AREA (SD) | 66 sq in / 0.043 sq m |
| LOW FREQUENCY RESPONSE | 14 Hz (DIN) |
| AMPLIFIER POWER | 1,100W RMS (2,200W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
| UNBALANCED INPUTS | Stereo or Mono (dual RCA jacks)/LFE RCA jack |
| POLARITY | 0 or 180 degrees |
| INPUT GROUNDING | Isolated |
| PHASE | Variable 0°-180° |
| FINISHES | Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut |
| WEIGHT | 65.1 lb / 29 kg each |
| DIMENSIONS HXWXD | 16.2" x 15.3" x 16.9" (41.2cm x 38.8cm x 42.9cm) |
| BALANCED INPUTS | One Balanced XLR (LFE) |
| SPEAKER/HIGH-LEVEL INPUTS | Left and right speaker level inputs |
