Overview
Pure Performance,Pure Value
Anthem's MRX A/V Receivers are about maximising audio performance that previously has been unobtainable at their respective price points. Building on the feature set of our previous models, we've added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem's Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.
The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 2 dedicated outputs with eARC. With MRX, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.
MRX 540 8K Features & Functions
MRX 540 7.2 Pre-Amplifier / 5 Amplifier Channel A/V Receiver
Anthem’s MRX A/V Receivers are about maximising audio performance that previously has been unobtainable at their respective price points. Building on the feature set of previous models, the MRX 540 8K now include:
Features include:
Audio Features:
HDMI & Video:
Decoding:
Custom Installation:
Streaming:
Listening Modes:
Additional Features:
Complexity Simplified
At Anthem, our goal is to shape how you interact with your technology, so we went the extra mile to ensure no detail is overlooked while providing the utmost flexibility when it comes to device setup. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the primary or secondardy zone on and off, adjust volume, change audio modes, tweak channel trims and more, for a perfect surround sound experience. You're in control, and it's never been easier.

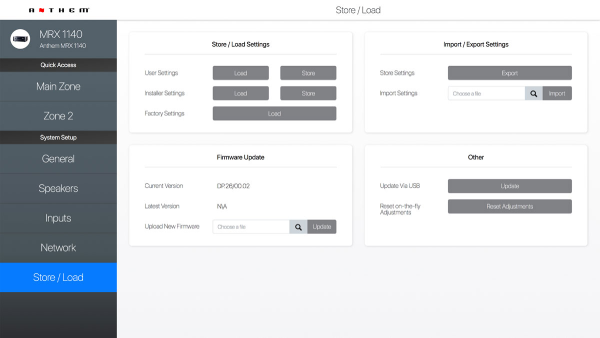

The On-Screen User-Interface Re-Invented
The Anthem Web User Interface was specially designed for easy setup. Nothing could be more simple than on-site configuration and calibration using our intuitive web based controls. The specially designed, adaptive web based user interface works on any device. Custom configure everything the new AVM/MRX series has to offer.
General Setup
Main Zone
Input Setup
Network Setup
Store Load
Zone 2

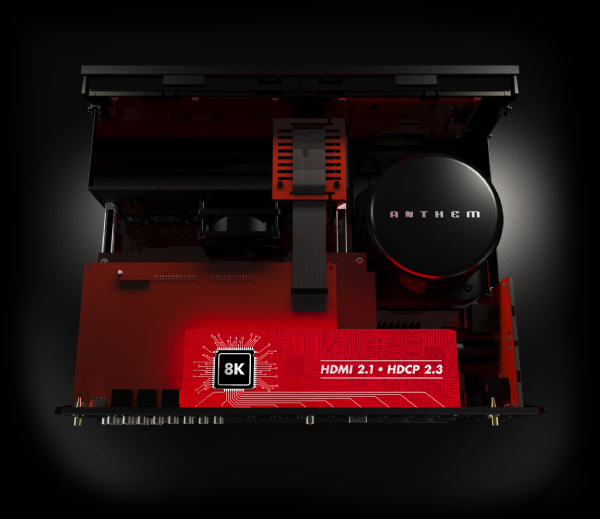

Advanced 8K HDMI Platform with e-ARC Support
Feel the power of every frame with the MRX Series and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated 8K inputs which support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the MRX 540, 740 and 1140 allow you to take your home entertainment to the next level with HDR10+, Dynamic HDR10+, ALLM and VRR support. The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.
Enhanced Audio Return Channel (e-ARC)
e-ARC simplifies connectivity, provides greater ease of use, and supports the most advanced audio formats and highest audio quality. It ensures full compatibility between audio devices and upcoming HDMI 2.1 products.
Dynamic HDR
Dynamic HDR support ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast and wider color gamuts—on a scene-by-scene or even a frame-by-frame basis.
Enhanced Gaming Features
Enhanced gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and better detailed gameplay. Auto Low Latency Mode (ALLM) allows the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity.
Experience Gaming Like Never Before on an MRX
It’s never been a more exciting time to be a gamer. With the latest consoles offering up to 4K/120Hz graphics, realistic HDR and Dolby Vision dynamic range, and immersive Dolby Atmos sound, you have to make sure your Home Theater gear won’t hold you back. Enter the MRX Series, our most feature-rich AV receivers to date!
Robust Integration
Our latest Anthem MRX series features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices including:
Design
At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.
Anthem Remote App
Gain unprecedented command over your network-enabled Anthem A/V Receiver, Processor or Pre-amplifier.
The Anthem Remote App uses a Wifi connection to simplify the configuration of supported Anthem devices. App-based controls include volume level, muting, input selection, power, listening modes, bass, treble, level trims, menu navigation, and Anthem Room Correction (ARC) control.
ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.
ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.
| MAXIMUM CONTINUOUS OUTPUT (1% THD) | |
|---|---|
| Remaining Channels, Two Driven into 6 Ohms | n/a |
| Remaining Channels, Two Driven into 8 Ohms | n/a |
| Channels 1-5, Two Driven into 8 Ohms | 100 W |
| Channels 1-5, Two Driven into 6 Ohms | 130 W |
| POWER REQUIREMENT | |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. |
| Weight | |
| MRX 540 | 28.2 lb (12.8 kg) |
| Dimensions | |
| Depth (including wifi ant not power cord) | 14-1/2" (36.4 cm) |
| Width | 17" (43.18 cm) |
| Height with Rackmount Kit | 4U |
| Height (without feet) | 6" (15.24 cm) |
| Power Consumption | |
| Standby HDMI Bypass Enabled | 4.9 W |
| Standby IP Control Enabled | 1.8 W |
| Standby | 0.3 W |
| Typical Load | 365 W |
| SPEAKER IMPEDANCE | |
| Compatible with 4 Ohms or higher impedance. | - |
| PREAMPLIFIER + AMPLIFIER (1 W OUTPUT) | |
| MRX 540 | SNR: 91 dB ch 1-5 |
| PREAMPLIFIER | |
| S/N Ratio (2 Vrms output, IEC-A filter) | 110 dB |
| THD+N (2 Vrms output) | -100 dB |
| Frequency Response, Analog-Direct | N/A |
| Frequency Response | 20Hz - 30KHz +/-0.2dB |
| PREAMPLIFIER Maximum Output (<0.1% THD) | 5.2 VRMS, 7.1VRMS |
