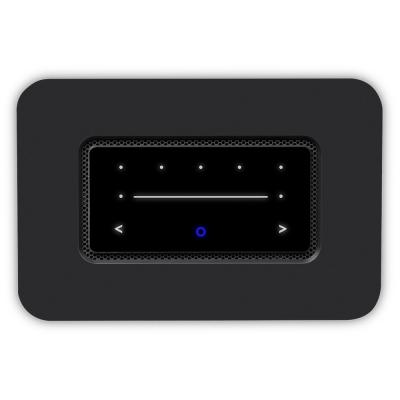

Wireless Multi-Room Hi-Res Music Streamer
The Bluesound NODE unlocks the world of hi-res music streaming and multi-room audio to create a modern addition to existing hi-fi systems or your favorite set of powered speakers.
The Bluesound NODE unlocks the world of hi-res music streaming and multi-room audio to create a modern addition to existing HiFi systems or your favorite set of powered speakers. Discover all the music ever recorded with access to hundreds of internet radio stations, dozens of streaming music services, or even your own digital music library, with a few taps of the BluOS Controller app for iOS, Android, or Mac or PC computers.
MEET THE NODE
The Bluesound NODE unlocks the world of hi-res music streaming and multi-room audio to create a modern addition to existing hi-fi systems or your favorite set of powered speakers.
WIFI YOUR HIFI
Bring 24-bit hi-res streaming to an existing stereo or to your powered speakers and access all the music ever recorded with a few taps of the BluOS Controller app for iOS, Android, or Mac or PC computers. Hundreds of internet radio stations, premium music services like Tidal, Qobuz, Deezer, Spotify and dozens of other music streaming services, are integrated with the NODE's operating system, making music discovery seamless and exciting.
BEAUTY AND BRAINS.
Don't let the size and minimalist looks of the NODE fool you into diminishing its capabilities. Inside, the NODE features an audiophile-grade DAC design that not only supports 24-bit/192 kHz audio processing, but also MQA for master quality listening. Along with powerful software features like tone controls and fixed volume output, you can customize your listening preferences in detail.
PLAYS WELL WITH OTHERS.
Bring music into your NODE using HDMI eARC, Wi-Fi or Ethernet, Apple AirPlay 2, aptX HD Bluetooth, or USB, to hear audio content from streaming services, TV, and your own music library. Listen to your music through your HiFi system or through wired or wireless headphones, by connecting to the RCA, TOSLINK optical, aptX HD Bluetooth, 3.5mm jack, Apple devices, or other Bluesound or BluOS players.
FROM ANYWHERE TO EVERYWHERE.
Bit-perfect music listening can happen away from your HiFi system with the NODE as your multi-room hub. The award-winning BluOS platform is the only platform in the world that can support up to 64 players, all streaming in 24-bit hi-res audio. With a growing stable of brands and devices being added to the BluOS platform, the NODE opens up a world of hi-res listening options throughout your home that no other player can.
CONTROL FREAK.
Quick access controls like play/pause, track skipping, and volume are available as touch panel controls at the top of the NODE, via voice assistants like Siri, Alexa, or Google Voice, or by programming your own IR remote or the optional Bluesound RC1. Advanced controls, including tone controls, subwoofer crossover optimization, and settings to enhance external DAC connections are available in the BluOS Controller app. The NODE can also be integrated into a smart home with full-feature drivers for Lutron, Elan, RTI, Crestron, and other popular home control systems.
HI-RES MUSIC. EVERYWHERE.
Seamlessly connect the NODE to multiple Bluesound speakers throughout the home with the BluOS Controller app and create an intuitive multi-room music system unlike any other.
CONNECTIONS | |
---|---|
Network | Wi-Fi 5 (802.11ac, 2.4/5GHz) , Ethernet RJ45, GigE 1000 Mbps |
Audio Input | Mini TOSLINK/3.5mm Stereo combo HDMI eARC |
Audio Output | Analog Stereo RCA (Fixed or Variable) , Coaxial RCA , TOSLINK digital optical , USB Audio 2.0* |
Bluetooth | Bluetooth with support for aptX HD , Two-Way (transmit & receive) |
Headphones | 3.5mm Stereo Out , Wireless Bluetooth Out |
Subwoofer | RCA Out Network Pairing to PULSE SUB+ |
USB | Type-A Port for external drive connection (Fat32 or NTFS formatted) |
Trigger | 12V Trigger Out |
IR Remote | IR Sensor Built In - front panel with IR Remote Learning IR Input 3.5mm Jack |
Power | Universal bi-pin AC cord input (100-240AC) |
Audio | |
Supported Audio File Formats | MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS |
Supported Hi-Res Audio File Formats | FLAC, MQA, WAV, AIFF, MPEG-4 SLS |
Processor | ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core |
Native Sampling Rates | up to 192 kHz |
Bit Depths | 16-24 |
Performance | SNR -113dBA , THD+N, 0.002% |
DAC | 32-Bit, 384kHz , Differential Output design |
Software & Integrations | |
Operating System | BluOS |
App Controller Operating Systems | iOS, Android, Windows Vista, 7, 8, 10, macOS 10-11 |
Network File Sharing | SMB up to 200,000 track index |
Album Art Supported | JPG, PNG |
Voice Control | Amazon Alexa Skills; Actions on Google |
3rd-Party | AirPlay 2 , Spotify Connect , Tidal Connect , Roon Ready |
Control Systems | Control4, Crestron, URC, RTI, ELAN, Lutron |
USER INTERFACE | |
Status Indicator | RGB LED x 2 |
Play/Pause Button | Touch LED |
Volume Control Buttons | Touch Slider LED |
Previous/Next Track Buttons | Touch LED |
Preset Buttons | Touch LED x 5 |
Proximity Sensor | Yes |
General | |
Finish | Black/White; Matte Satin Paint |
Included Accessories | 120V AC Power Cord , 230V AC Power Cord , Ethernet Cable , Stereo RCA to RCA Cable , TOSLINK Optical to 3.5mm Mini Adaptor , Safety/Warranty Guide , Quick Setup Guide |
Storage Environment | -10°C to 50°C, 20% to 80% relative humidity |
Operating Environment | 0°C to 40°C |
Product Weight | 1.09kg/2.4lbs |
Product Dimensions | 220 x 46 x 146 mm , 8.7 x 1.8 x 5.7 in |
Shipping Weight | 2.28kg/5.03lbs |
Shipping Dimensions | 300 x 300 x 74 mm , 11.8 x 11.8 x 2.75 in |
