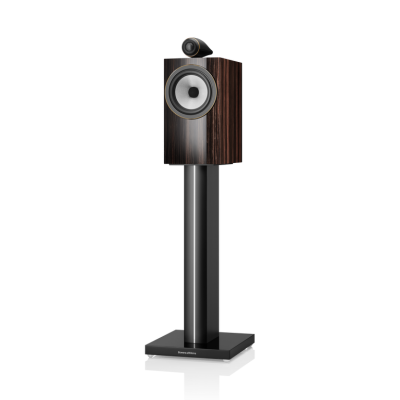

The 705 S3 Signature is expertly engineered to deliver sonic brilliance in a more compact form.
Crafted. Honed. Perfected.
Featuring optimized technology from our most advanced loudspeakers, as well as our proprietary Continuum mid-bass drive unit and Tweeter-on-Top, the 705 S3 Signature utilizes an upgraded mid-bass motor system, improved capacitors, revised speaker terminals, plus a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
Crafted
We are inventors, pioneers and innovators, continuously developing technologies and products that raise the bar for audio excellence. Bowers & Wilkins engineers craft our 700 Series Signature models with the same care and precision that all our category-defining audio systems are renowned for. The results, however, are unique.
Honed
Built on the foundations of our most advanced technologies, we carefully optimize our 700 Series Signature models to reflect the latest developments in audio excellence. The small details can make the biggest difference – and these are the ones we pay close attention to fine-tuning.
Perfected
We’re passionate about providing the best, truest listening experience we can. Our 700 Series Signature models draw from this lifelong goal and offer a pinnacle in performance and design. We’ve evolved these loudspeakers to optimum heights. This is the best of our best.
TECHNICAL DETAILS | |
---|---|
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis), <1% 100Hz - 22kHz, <0.5% 150Hz - 20kHz |
Frequency response | 50Hz - 28kHz ±3dB |
Frequency range | -6dB 45Hz - 33kHz |
Drive units | 1x ø25mm (1in) Decoupled Carbon Dome high-frequency,1x ø165mm (6.5in) Continuum cone bass / midrange |
Size & Weight | |
Dimensions | Height: 345mm (13.6in) cabinet only 413mm (16.3in) including tweeter,Width: 192mm (7.6in) cabinet only,Depth: 297mm (11.7in) cabinet only 337mm (13.3in) including grille and terminals |
Net weight | 10.35 kg (22.8 lbs) |
FINISHES | |
Cabinet finishes | Datuk Gloss,Midnight Blue Metallic |
TECHNICAL DETAILS | |
Max recommended cable impedance | 0.1Ω |
Description | 2-way vented-box system |
Technical features | Decoupled Carbon Dome tweeter,Solid Body Tweeter-on-Top,Continuum™ cone bass / midrange,Flowport™ |
Sensitivity | 88dB spl (2.83Vrms, 1m) |
Recommended amplifier power | 30W - 120W into 8Ω on unclipped programme |
Nominal impedance | 8Ω (minimum 3.7Ω) |
FINISHES | |
Grille finishes | Black |
