Exclusive Plug-and-Play MkII solution

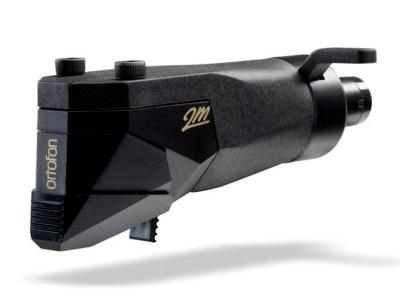

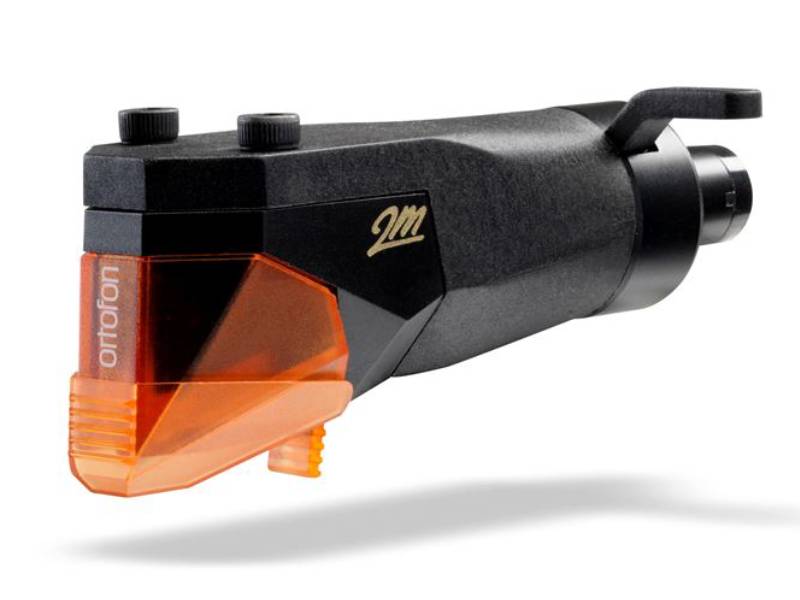

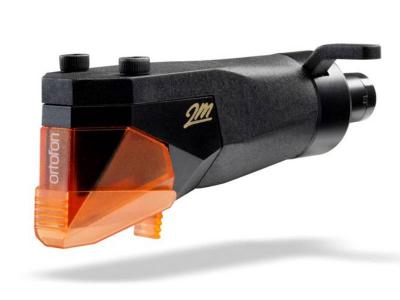

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!
Features:
Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
Specifications | |
---|---|
Output voltage at 1 kHz, 5 cm/sec | 5 mV |
Frequency range at -3 dB | 20–31,000 Hz |
Tracking ability at 315 Hz at recommended tracking force | 80 µm |
Compliance, dynamic, lateral | 22 µm/mN |
Stylus type | Nude Shibata |
Tracking force recommended* | 1.5 g (15 mN) |
Load resistance* | 47 kOhm |
Load capacitance* | 150–300 pF |
