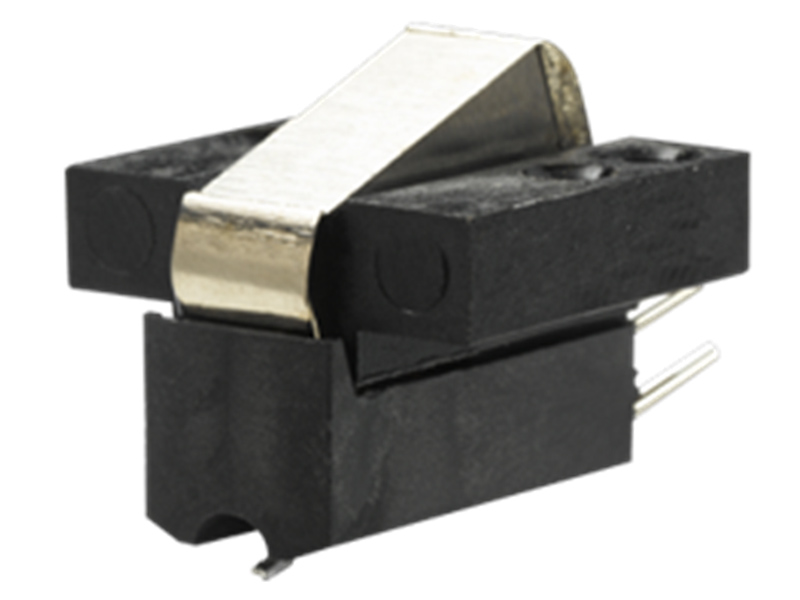

Ortofon Moving Coil Phono Cartridge - SPU Classic N

The SPU Classic N provides the same sound reproduction properties as the SPU Classic GM series
The SPU Classic N is sold without the integrated headshell unit.
The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.
Listeners who wish to mount the SPU Classic on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

Technical data

• Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
• Channel balance at 1 kHz  < 1 dB
• Channel separation at 1 kHz  > 20 dB
• Channel separation at 15 kHz  > 10 dB
• Frequency response - 20-20.000 Hz ± 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 65 µm
• Compliance, dynamic, lateral - 8 µm/mN
• Stylus type - Nude spherical
• Stylus tip radius - R 18 µm
• Tracking force range - 3.0-5.0 g (30-50 mN)
• Tracking force, recommended - 4.0 g (40 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 2.0 ohm
• Recommended load impedance  > 10 ohm
• Coilwire material - High Purity Copper (OFC)
• Cartridge colour - Black
• Cartridge weight - 13 g
