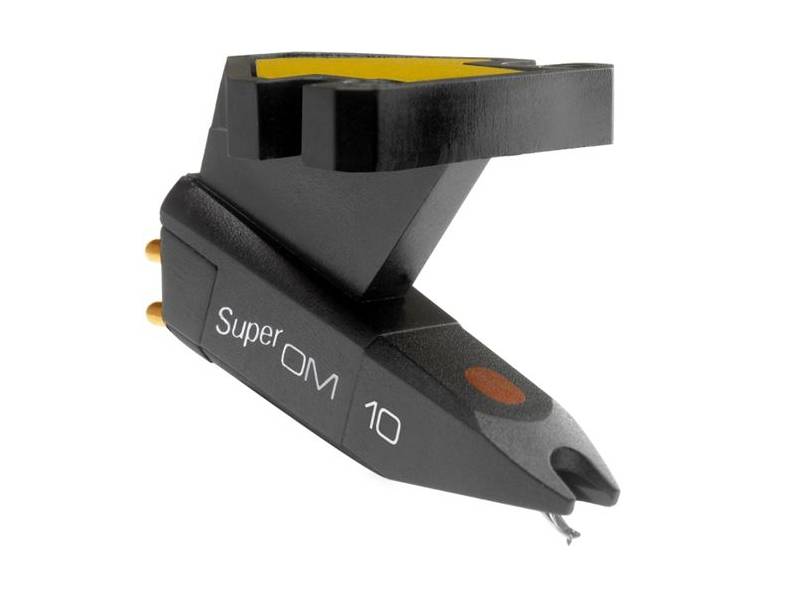

The Ortofon Super OM cartridges
The Super OM cartridges have been designed on the basis of our OM lightweight system with three major improvements:
All Super OM models have the same body, construction and magnetic circuitry. The only difference is the interchangeable stylus unit. We offer a wide range of replacement styli for the OM Super Series cartridges.
Specifications | |
---|---|
Output voltage at 1000 Hz, 5cm/sec. | > 4 mV |
Channel balance at 1 kHz | < 1,5 dB |
Channel separation at 1 kHz | > 22 dB |
Frequency response | 20-20,000Hz +3/-1 dB |
Frequency range | 20-24,000Hz |
Tracking ability (315Hz, lateral) | > 70 µm |
Compliance, dynamic (lateral) | 25 µm/mN |
Stylus type | Elliptical |
Stylus tip radius | r/R 8/18 µm |
Tracking force range | 1,25-1,75 g |
Recommended tracking force | 1,5 g |
Tracking angle (vertical) | 20° |
Internal impedance, DC resistance | 1 kOhm |
Internal inductance | 580 mH |
Recommended load resistance | 47 kOhm |
Recommended load capacitance | 200 - 500 pF |
Cartridge weight including weight plate | 5 g |
Cartridge weight without weight plate | 2,5 g |
