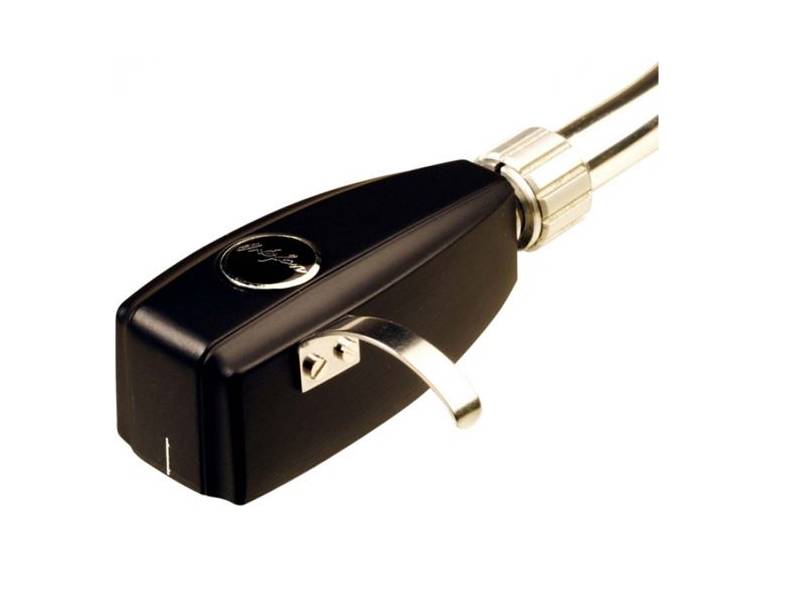

The SPU Mono CG 65 Di MkII for the playback of early 65 µm mono and 78 rpm recordings
The Mono CG 65 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile. The CG 65 Di MkII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII.
| Specifications | |
|---|---|
| Output voltage at 1000 Hz, 5cm/sec. | 1.5 mV |
| Frequency response | 20-15.000 Hz + 3/- 1 dB |
| Tracking ability at 315Hz at recommended tracking force *) | > 60 µm |
| Compliance, dynamic, lateral | 7 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | R 65 µm |
| Tracking force range | 4.0-5.0 g (40-50 mN) |
| Tracking force, recommended | 4.5 g (45 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 ohm |
| Recommended load impedance | > 100 ohm |
| Cartridge body material | Ground wood and resin composite |
| Coilwire material | High Purity Copper (OFC) |
| Cartridge colour | Black matte |
| Cartridge weight | 37 g |
