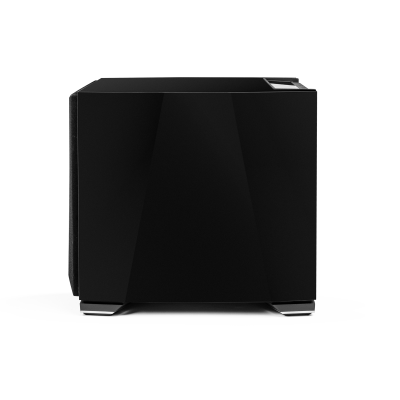

13" (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-FusionTM Bracing and ADVANCED Shock-Mount™, built-in 2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
| Specifications | |
|---|---|

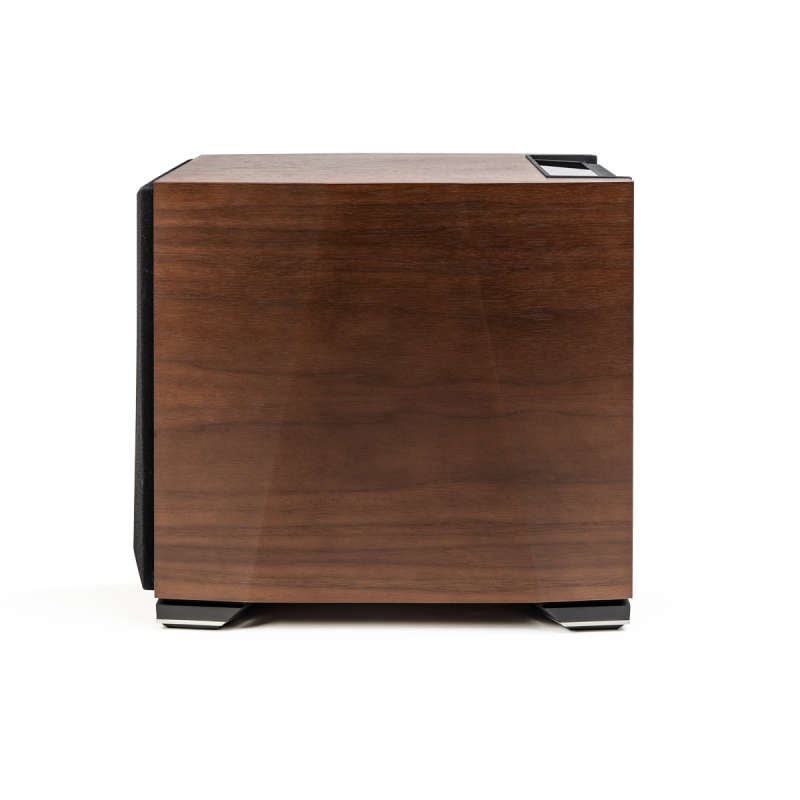

| FINISHES | Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut |
| WEIGHT | 103.8 lb / 47.1 kg |
| DIMENSIONS HXWXD | 18.8" x 17.3 " x 19.4" (47.8cm x 43.8cm x 49.3cm) |
| POLARITY | 0 or 180 degrees |
| PHASE | Variable 0°-180° |
| INPUT GROUNDING | Grounded |
| SPEAKER/HIGH-LEVEL INPUTS | Left and right speaker level inputs |
| BALANCED INPUTS | One Balanced XLR (LFE) |
| UNBALANCED INPUTS | Stereo or Mono (dual RCA jacks)/LFE RCA jack |
| AMPLIFIER POWER | 2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
| LOW FREQUENCY RESPONSE | 12 Hz (DIN) |
| EFFECTIVE DISPLACEMENT | 366.1 cu in/6 L |
| EFFECTIVE PISTON AREA (SD) | 93.7 sq in / 0.06 sq m |
| LOW FREQUENCY DRIVER | 13" (330 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 2" high-temperature voice coil |
| ROOM CORRECTION | ARC Genesis (microphone included) |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 17 Hz to 140 Hz |
| AMPLIFIER FEATURES | Auto-On / Off, Trigger On / Off |
| DESIGN | 13" (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
