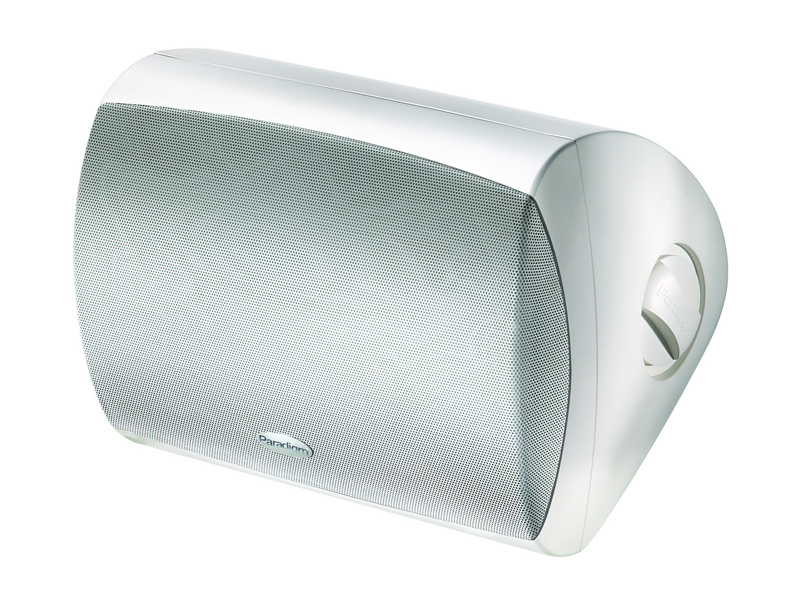

Paradigm Classic Collection Outdoor Speaker Stylus 470-SM (W)

Paradigm Classic Collection Outdoor Speaker - Stylus 470-SM (B)

Paradigm Classic Collection Outdoor Speaker Stylus 470-SM (W)

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

In Store Only

In Store Only

In Store Only

More options
Literature

Brave The Elements
When it comes to high-performance outdoor sound, Paradigm has your backyard covered! Contemporary Stylus speakers are an easy, stylish and surprisingly affordable way to bring the Paradigm high-performance sound you enjoy indoors … outdoors. They’re weather resistant — so install them outdoors and leave them there.

Solo Performers: Stylus 370-SM & Stylus 470-SM

  • Two PTD™ Pure-Titanium High-Frequency Domes offset at 30° angles
  • Dual Voice-Coil ICP™ Injection-Molded Co-Polymer Bass / Midrange Cone

Stylus high-performance “SM” (stereo/mono) speakers offer rich pure-fidelity dual-channel sound from a single speaker. Their unique Dual-Directional Soundfield™ provides wider-than-normal dispersion, a particularly important consideration outdoors where there are no walls or ceiling to contain sound. These speakers are ideal in small outdoor areas less suited to a stereo pair, or where a single speaker is preferred.

In larger areas, multiple “SM” speakers eliminate sound imbalances that occur with stereo sound as people move around, or are seated closer to one speaker than the other. For details on all placement options provided by Stylus “SM” speakers see your Dealer.

Superior PTD™ Pure-Titanium Domes with Unique Controlled WaveGuide™ Faceplates deliver smooth, clear, extended response. Ferro-fluid cooled and damped.

Superior ICP™ Injection-Molded Co-Polymer Polypropylene Cones. Oversized magnets and superior motor structures ensure a very detailed, authentic midrange.

Superior PolyGlass™ Mineral-Filled Reinforced Enclosures. Fully sealed (no ports) for protection against the outdoor environment … even under adverse weather conditions!

Weather, Water, UV-Resistant Aluminum Grilles stainless steel / brass hardware, gold-plated binding posts and stainless steel / polymer mounting brackets.

Specifications
DesignSingle speaker system with stereo L/R inputs, 3-driver, 2 x 2-way acoustic suspension, weather,water, UV-resistant PolyGlass™ enclosure
CrossoverTwo 3rd-order electro-acoustic at 2.3 kHz
Frequency Response   On-Axis±2 dB from 75 Hz - 20 kHz
Frequency Response   30° Off-Axis±2 dB from 75 Hz - 15 kHz
High Frequency DriverTwo 25-mm (1 in) PTD™ domes
Mid/Bass Frequency DriverDual voice-coil, 190-mm (7-1/2 in) ICP™ cone, die-cast chassis
Low Frequency Extension50 Hz (DIN)
Sensitivity   Room / Anechoic93 dB /
ImpedanceCompatible with 4 ohms Mono; 8 ohms / channel Stereo Input
Suitable Amplifier Power Range15 - 110 watts Mono; 15 - 55 watts / channel Stereo Input
Maximum Input Power80 watts Mono; 40 watts / channel Stereo Input
FinishesBlack, White
Weight10.6 lbs. (4.8 kg)
Dimensions   HxWxD12.625" × 8.875" × 8.75"(32.1cm × 22.5cm × 22.2cm)
