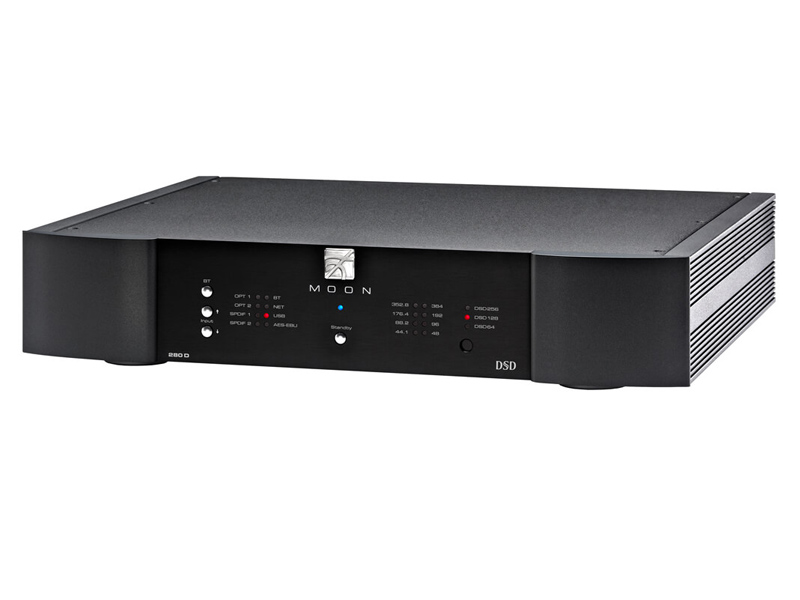

Moon by Simaudio Streaming DAC - 280D DAC (S)

Moon by Simaudio Streaming DAC - 280D DAC (B)

Moon by Simaudio Streaming DAC - 280D DAC (2-Tone)

Moon by Simaudio Streaming DAC - 280D DAC (S)

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Call for Pricing
(416) 665-0749

Call for Pricing
(416) 665-0749

Call for Pricing
(416) 665-0749

More options
Literature

Optional MiND 2 streaming module
MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music.
MiND 2 is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats (via local files and TIDAL Master files).

world of music
Imagine a world of music right at your fingertips. The MOON 280D makes this a reality. Simply launch your favorite music services app on your smart device and pair it to the MOON 280D using Bluetooth technology. Then sit back and enjoy the music.

lifelike transparency
The extraordinary digital engine within the MOON 280D decodes native DSD up to DSD256, as well as PCM up to 32-bit/384kHz, including DXD. The fully balanced analog stage features an exceptional 3rd order filter for lifelike transparency. The result is a level of fidelity that creates an emotional connection to your music.

effortlessly for musical pleasure
Which ever way you use the MOON 280D, we are convinced that it will become the center of your musical pleasure. Of course, key features you’d expect in a MOON product are present such as SimLink™, RS-232 and IR ports for custom-install environments.

Design features

  • Fully asynchronous DAC.
  • Supports native DSD64, DSD128 and DSD256 (USB only).
  • Supports PCM up to 384kHz (32-bit on USB only).
  • 7 digital inputs (AES/EBU x 1, S/PDIF x 2, TosLink x 2, USB x 1 and Qualcomm® aptXTM audio for Bluetooth® x 1) for use with virtually any digital source.
  • Front panel LED indicators for active input and input signal PCM sampling & DSD rates.
  • Optional 8th digital input through our MiND 2 streaming module (via WiFi or Ethernet).
  • Analog stage: fully balanced differential circuit for increased dynamic range and headroom, higher resolution, as well as improved signal-to-noise ratio.
  • For MOON 280D equipped with MiND 2:

ROON Ready device

  • Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
  • MQA decoding
  • Multi-room synchronized playback
Specifications
Frequency response (full range) 2 Hz - 100 kHz +0/-3 dB
THD @ 1kHz, 0dBFS (A-weighted) 0.001 %
Intermodulation distortion 0.002 %
Dynamic Range 120 dB
Signal-to-noise Ratio 118 dB @ full output
Channel Separation 116 dB
Intrinsic Jitter 1 picosecond RMS
Analog Output @ 0dBFS 2.0 V
Analog output impedance 100 Ω
PCM Bit-depth range 16 - 32 bits
PCM sampling frequency rates 44.1 - 384 kHz
DSD sample rates DSD64, DSD128 & DSD256
Shipping weight 16 lb / 7.5 kg
Dimensions (width x height x depth) 16.9 x 3.4 x 13.1 in
