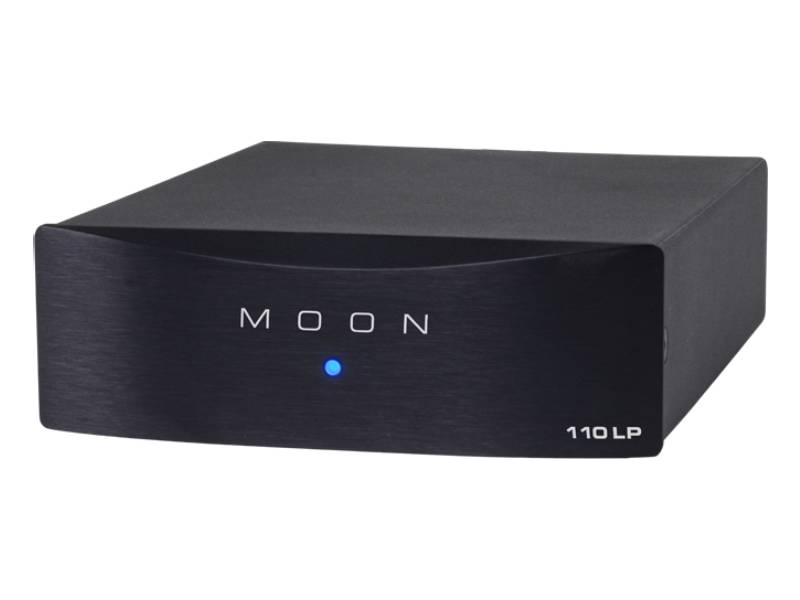

Moon by Simaudio Phono Preamplifier - 110LPv2

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audio One offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Call for Pricing
(416) 665-0749

Literature

Sound Quality

Developed with award-winning technologies used in our more exotic phono preamplifiers, the MOON 110LP v2 represents another leap forward in sound quality and affordability.

Dynamic

Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies.  This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.

Convenient & Flexible

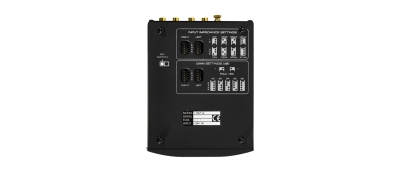

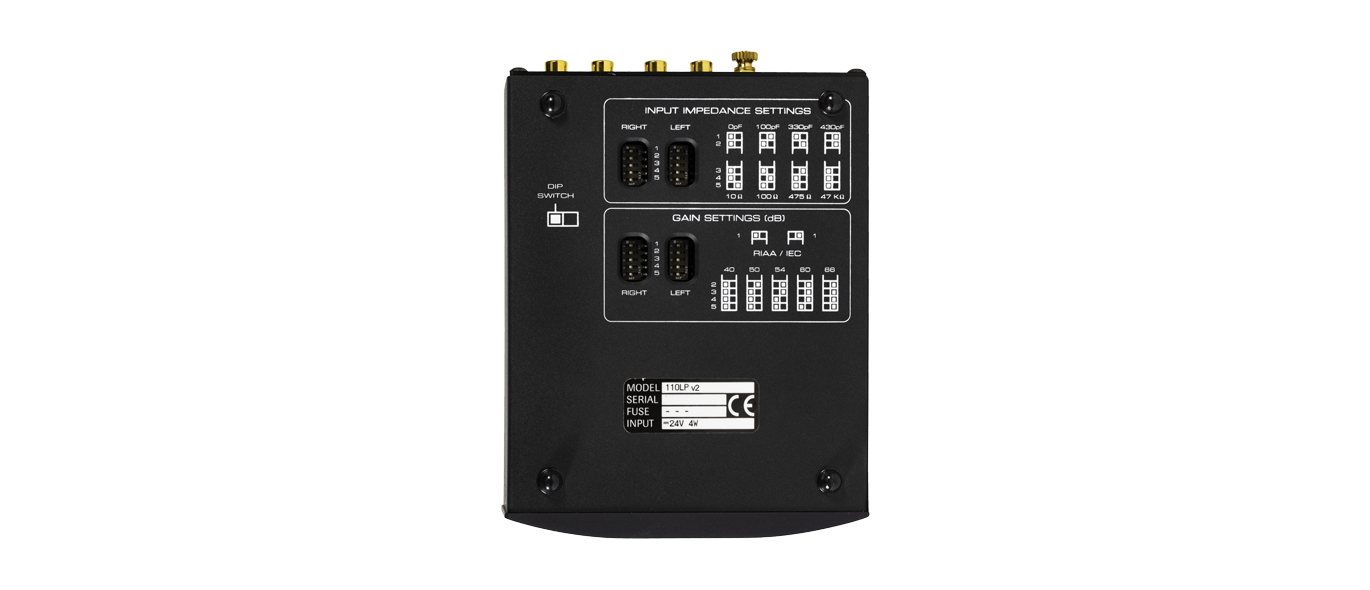

In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.

Design features

  • End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
  • End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
  • End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
  • End user selectable curve (IEC/RIAA)
  • Four layer PCB tracings using pure copper for low impedance characteristics
  • Inductive DC Filtering for a significantly lower noise floor
  • Compact, rigid all-aluminum chassis with gold-plated RCA connectors
  • Designed to be powered up at all times for optimal performance
Specifications
Circuit Layout Mirror-image symmetrical circuit

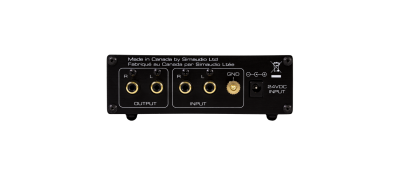

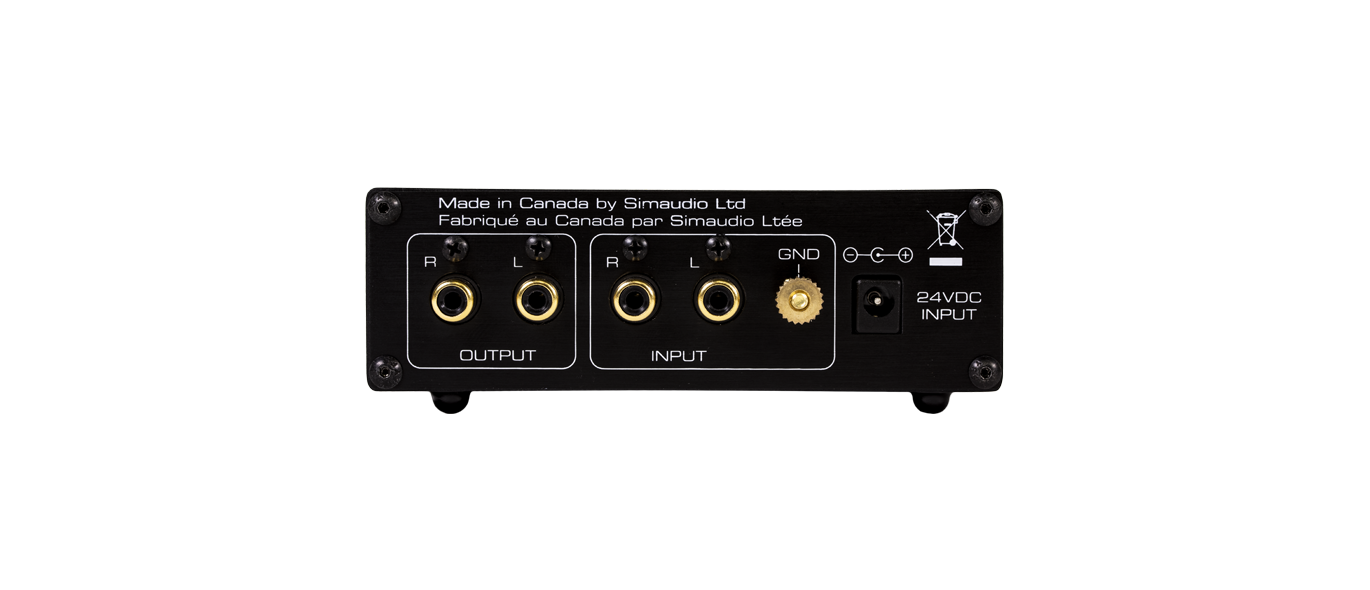

Single-ended inputs 1 pair (RCA)
Input Impedance - Adjustable10Ω / 100Ω / 475Ω / 47kΩ
Input Capacitance - Adjustable0 / 100pF / 330pF / 430pF
Gain Level - Adjustable40dB / 50dB / 54dB / 60dB / 66dB
CurveIEC / RIAA
Signal-to-noise Ratio (full scale @40 dB gain)104 dB
Signal-to-noise Ratio (full scale @60 dB gain)87 dB
Frequency Response20Hz - 20kHz (± 0.5dB)
Intermodulation Distortion0.002%
THD (20Hz - 20kHz)0.002%
Power Consumption @ idle2 W
AC Power Requirements100-240V 50Hz / 60 Hz
Shipping Weight3.3 lb / 1.5 kg
Dimensions (W x H x D)5.0 x 1.65 x 6.5 in 12.7 x 4.2 x 16.5 cm
