This speaker possesses all the technical and design features of the KIN Slim IC series, and the signature performance characteristics of all Totem speakers. But, it’s quite unique, and is yet another ingenious audio solution.
When light fixtures, heating or cooling vents, and all other potential obstructions prohibit perfect placement within a ceiling, the AIC 6 Slim will overcome the issues. The angled baffle directs the sound towards the listening area so no matter how imperfect it’s location, the performance is flawless.
Discover your Kin Architectural and expand your musical experiences.
Optional Accessories
PCK6 : Pre-construction kits facilitate installation before drywall has been installed.
SGK6 : Square Grille Kits permit cosmetic finishing touches to suit personal design tastes.
Design Highlights
Technical Features
Enormous Dispersion
KIN IC diffuse sound in an enormously wide, expansive manner comparable to a flood light and illuminate a room with Totem’s holographic sound whereas most others function like a focused, narrow spotlight, creating small acoustic “hot spots”. The dispersion is almost twice that of competitive speakers, so it takes fewer Totem speakers to thoroughly fill a room, and listeners enjoy the same sound whether seated or standing.
Slim Profile
This series of 5 in-wall, in-ceiling, and angled in ceiling speakers have a mounting depth that is 25% shallower than comparable KIN IC models. The remarkable shallowness ensures KIN IC Slim can fit wherever sound is required.

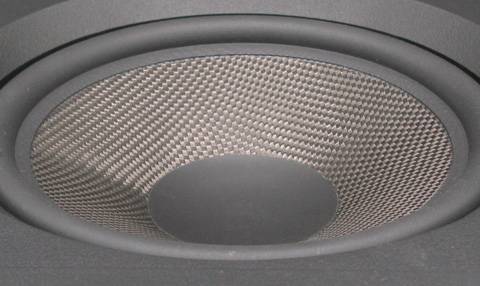

Carbon Fiber Woofers
The pure polymer impregnated carbon weave is very stiff so it maintains its perfect shape through punishing bass output. It is also incredibly light so it reacts instantaneously. Coupled to a high compliance rubber suspension, the cone motion is controlled for the best possible transient response and clarity. The overall result is thunderous, fast, tight bass.

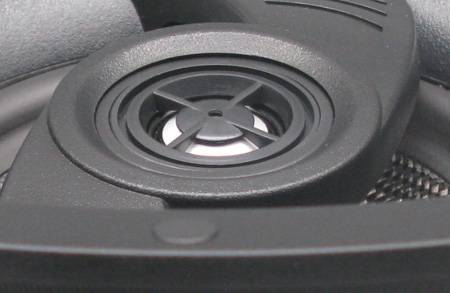

Ceramic Dome Tweeters in Pivoting Faceplate
An aluminum dome receives a ceramic coating to greatly improve the stiffness and damping characteristics over traditional metal domes. This procedure moves the natural resonance out to 25kHz, well past our hearing ability, for the clearest, distortion-free sound. The faceplate is pivotable to allow the directional high frequencies to be aimed at the listening area.
Specifications | |
---|---|
Design: | Slim 6″ Angled In-Ceiling |
Frequency Response: | 60 Hz – 25 kHz |
Recommended Power: | 10-100w |
Woofer: | 6″ Carbon Fiber |
Tweeter: | 3/4″ Cermaic Dome |
Impedance: | 8 ohm |
Sensitivity (dB @1W-1M): | 90dB |
Dimensions (w x h x d): | 239 x 121mm / 9.37 x 4.76″ |
Cutout: | 206mm / 8.11″ |

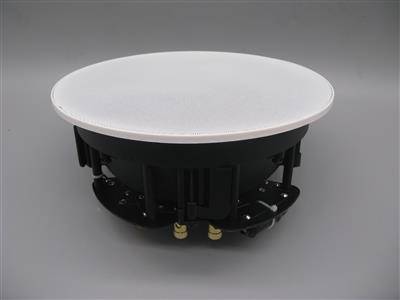

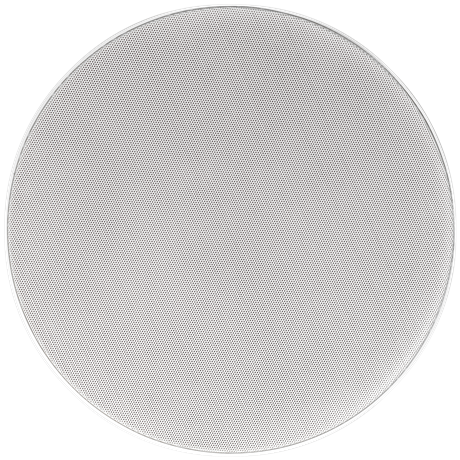

Grille Type: | magnetic, paintable, virtually bezel-less white metal |
Accessories / Options: | Pre-construction brackets, square grilles |
Speaker Terminals: | Spring loaded Gold Plated |
Weight: | 3.1lb / 1.4kg |
